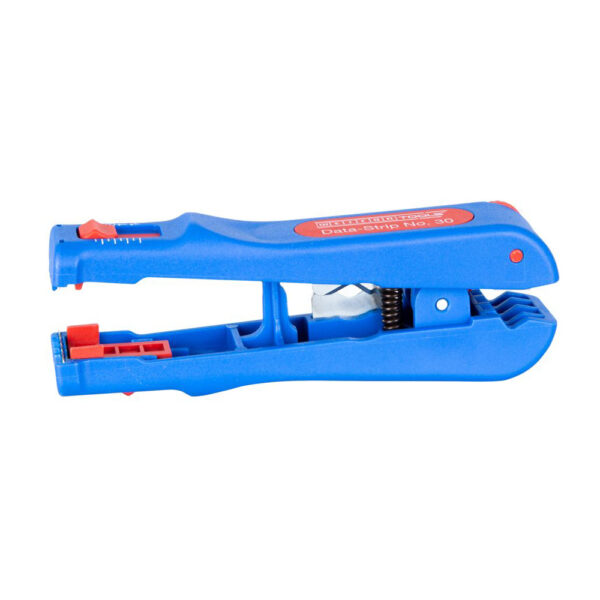

Data-Strip No. 30
for skinning and stripping data and network cables I incl. side cutter I Working range 4.0 – 10 mm Ø
- Description
Description
Inner blade adjustable to insulation thickness I Working range 0.05 – 0.5 mm² / 4 – 10 mm Ø I Precise stripping due to adjustable length stop (3.5 – 14 mm) I Integrated, well-accessible side cutter up to 8 mm Ø I Stripping of conductors and strands, e.g. on telephone cables I Removing of the outer insulation of data cables

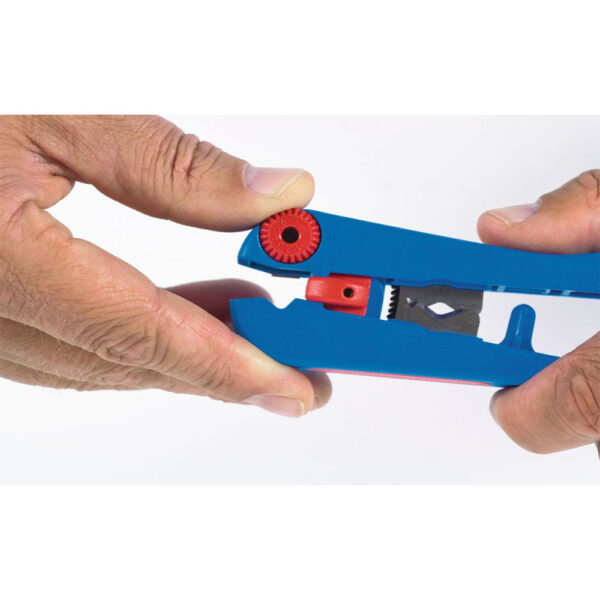

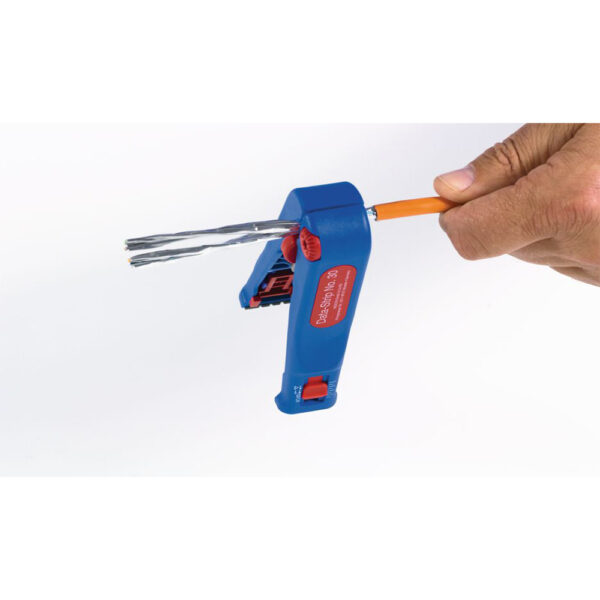

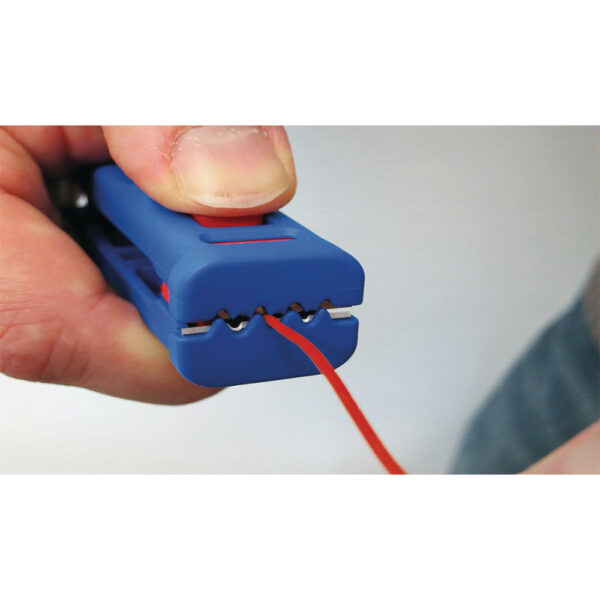

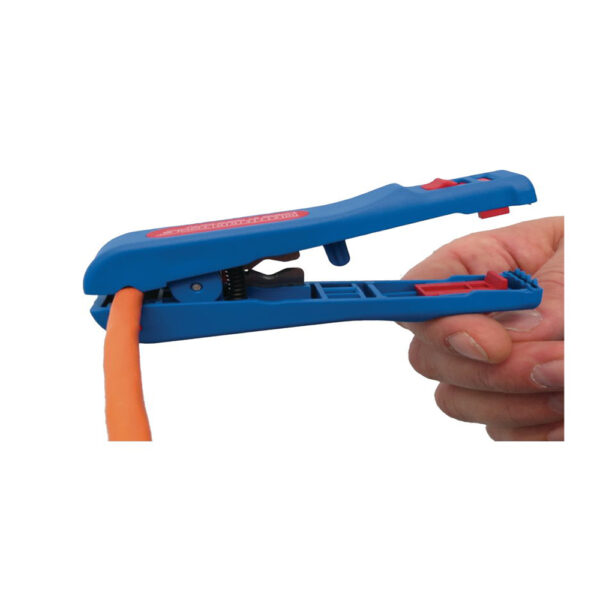

With the Weicon Data-Strip, shielded data cables and special cables with a diameter of 4 – 10 mm and insulation thicknesses of 0.2 to 1.4 mm can be stripped. The integrated adjusting wheel allows the blade to be set to different insulation thicknesses. The continuously adjustable blade can be replaced if required. Another function is the stripping of the strands with length stop in the range of 0.2 – 0.8 mm. The integrated side cutter effortlessly cuts CU/AI cables up to 8 mm in diameter.
