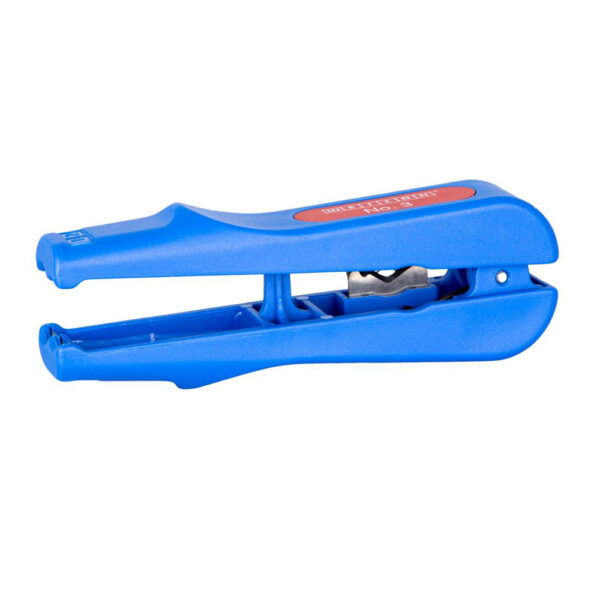

Combi-Coax No. 3
for skinning and stripping coaxial cables I incl. side cutter I working range 4,8 – 7,5 mm Ø
- Description
Description

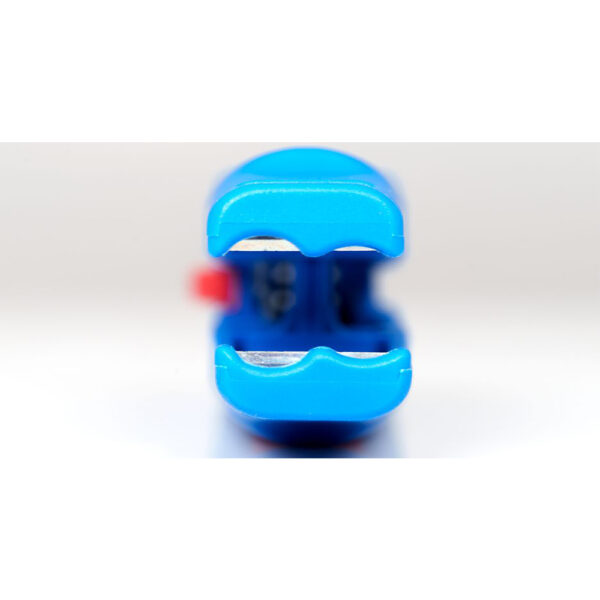

Parallel blade arrangement allows even faster stripping I Allows two- or three-level stripping of all common coaxial cables I Working range 4.8 – 7.5 mm Ø I Integrated and well accessible side cutter up to 8 mm Ø I Also suitable for flexible cables

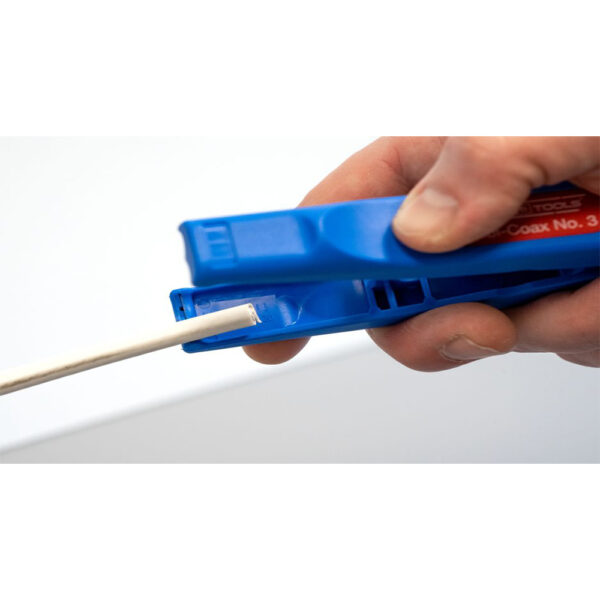

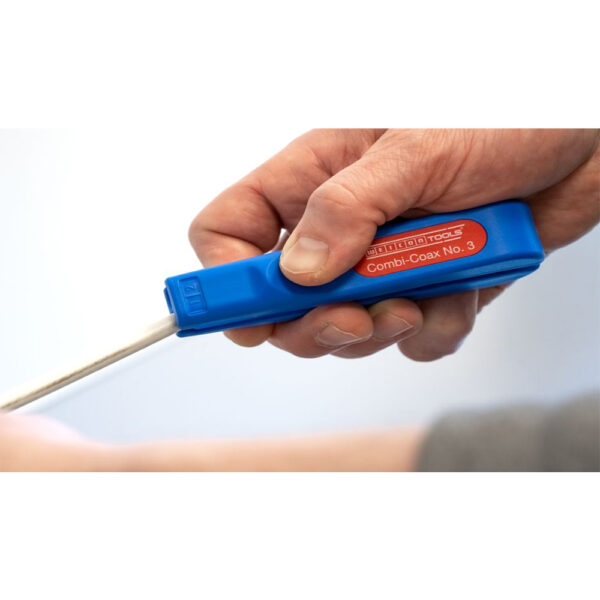

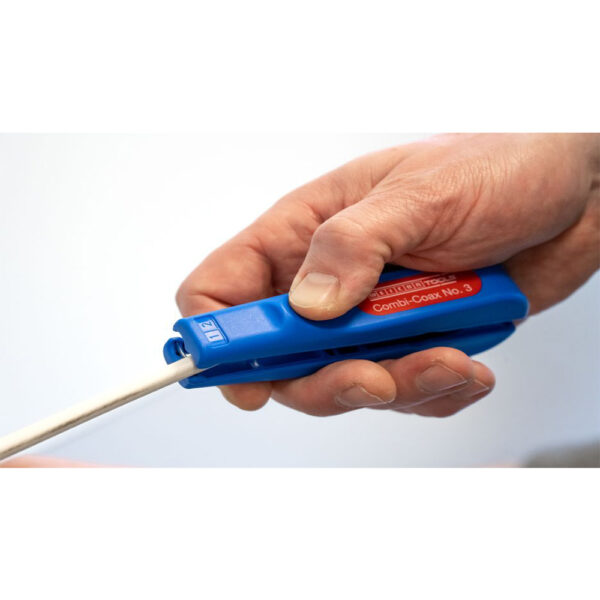

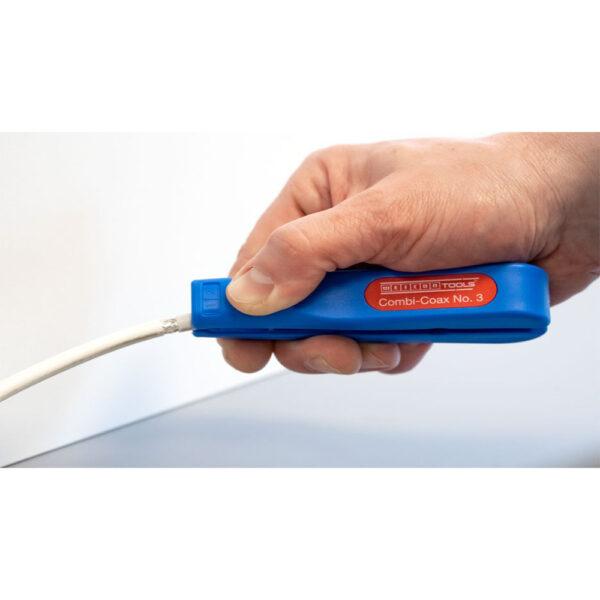

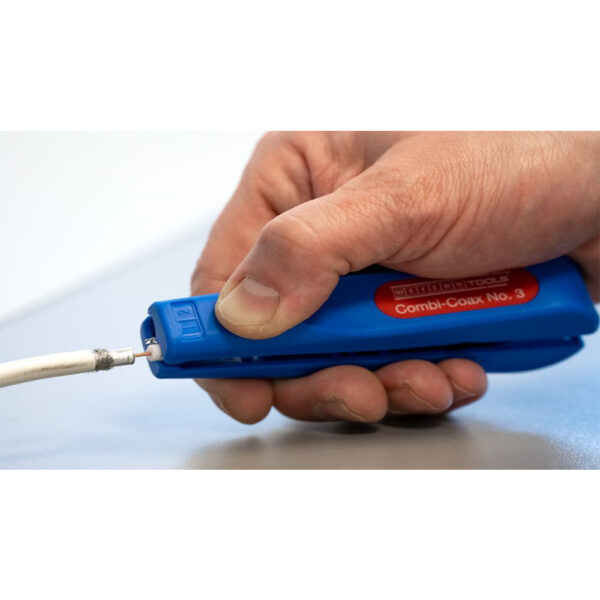

The Combi-Coax No. 3 enables step-by-step stripping of all common coaxial cables, NYM cables and flexible cables. Adjusting the cutting depth manually is not necessary. The Combi-Coax No. 3 strips coaxial cables with a diameter of 4.8 – 7.5 mm, NYM cables of 3 x 0.75 mm² and flexible cables of 10 and 16 mm². In addition, the Combi-Coax No. 3 has an easily accessible side cutter for cables up to 8 mm in diameter. When using the stripper, a precise cutting pattern is shown during stripping. For example, the first sheath of a coaxial cable can be removed with the knife of the stripper on side A. Then the inner conductor is stripped with side B.
